Products | Laundry Machines Dryer (Electric)

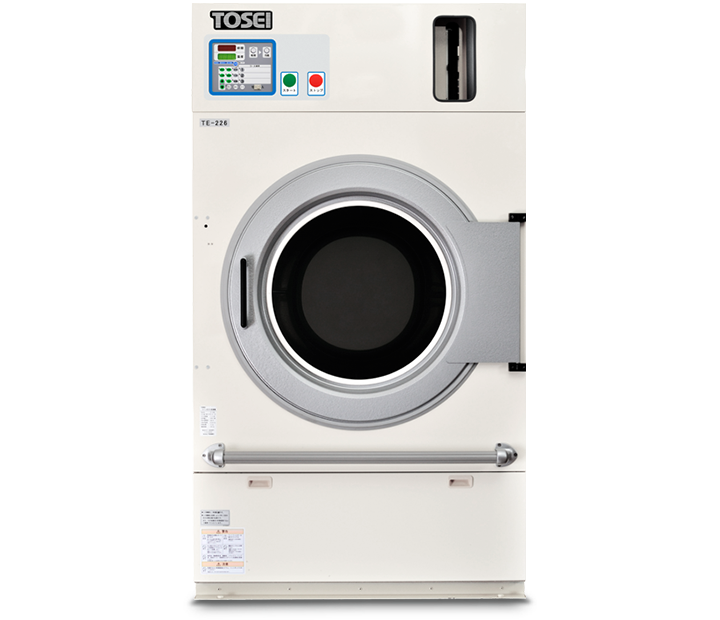

Dryer (Electric)
TE-226
- Tosei dryers dry quickly yet gently, minimizing damage to
fibers.
Electrical dryer enables precise temperature control for gentle, fluffy drying
action.
- Power
- AC200V 3-phase, 50/60Hz
- Max load capacity
- 22kg（JIMS 20kg）
- Drum size
- 900 diameter x 780 length
- Rotation
- Forward reverse, one direction, auto, random switch
- Drum rotation
- 38 to 46rpm (5 steps)
- Motor capacity
- Drum 0.4kW, Fan 0.4kW
- Current value
- 60A
- Electricity capacity
- 17kW
- Heater capacity
- 16.2kW
- Air flow
- Drying process 6 to 15m³/Cold blast process 15m³/min
- Exhaust connection
- Φ200
- Size(W × D × H)
- 1000 x 1300 x 1795mm
- Weight
- 350kg
