TOP Products | Laundry Machines Washer/Dryer(Coin-operated)

Coin-operated touchless washer/dryer

SF-275GL

SF Series [SF-275C]

  • Washing
  • Touchless panel
  • Extracting
  • Drying (Gas-powered)
  • All processes from washing to drying are complete in a single machine. With no need to transfer loads, these next-generation standard models deliver convenience and space-saving design.

  • Washing27kg
  • Drying18kg
<Product features>
Washing/Drying
Washing: 27 kg/ Drying: 18 kg
Body color
Stainless/ White
Acceptable coins
T.B.D. (local coins)
Power
200-240V I single phase
Drying / heating system
Open drying/ gas burner heating
Exhaust diameter
Diameter: 200 mm

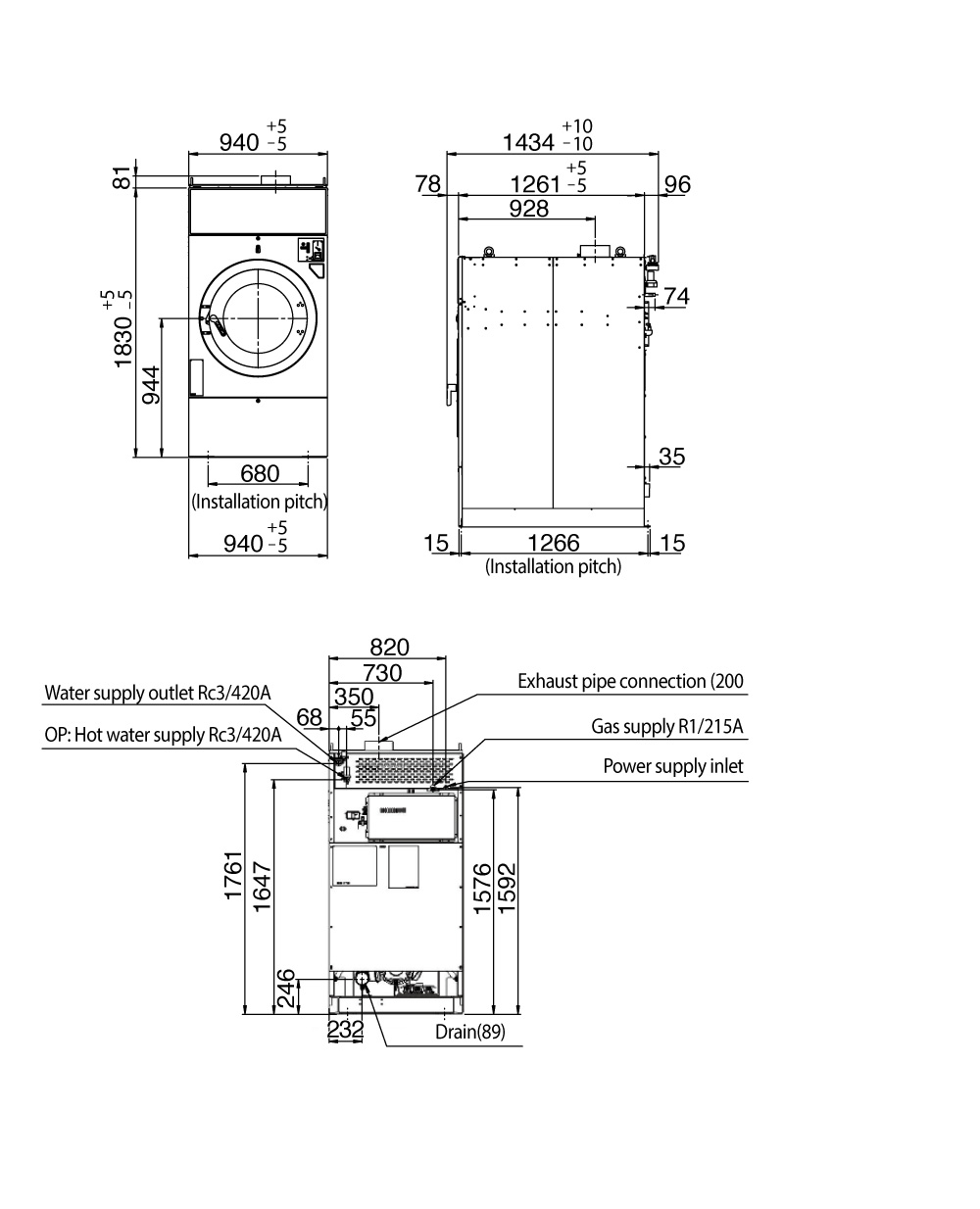

External dimensions ※1
940 (W) x 1357 (D) x 1830 (H) mm
Weight
820kg
Drum size
760 diameter x 595mm length
Rated electricity consumption
1400W (washing)/ 1050W (drying)
Drum rotation speed(max.)
Washing: 45rpm I spin: 770rpm I drying: 53rpm
Standard course water consumplion ※2
212L
Drying heat source/ gas consumption※3
LP gas: 20.9kW (1.49 kg/h)Mains gas (13A): 20.9kW (18,000 kcal/h)
Airflow
16 m3/min
Pipe diameter
Water supply: 20A Hot water supply: 20A (option) Gas supply: 15A Drainage: 89 mm
  • *1 The depth does not include the handle.
  • *2 Standard load. Varies depending on size of the load and fabric.
  • *3 Contact us nigarding gas consumption for mains gas (12A).

Washer/dryers SF Series [SF-275C]

Other lineup

  • SF-155GL SF-155GL Washing : 15kg Drying : 11kg
  • SF-275GL SF-275GL Washing : 27kg Drying : 18kg
  • SF-355GL SF-355GL Washing : 35kg Drying : 26kg
  • SF-155WW SF-155WW Washing : 15kg Drying : 11kg
  • SF-275WW SF-275WW Washing : 27kg Drying : 18kg
Product No. SF-155GL SF-275GL SF-355GL SF-155WW SF-275WW
Washing/Drying Washing: 15 kg/ Drying: 11 kg Washing: 27 kg/ Drying: 18 kg Washing: 35 kg/ Drying: 26 kg Washing: 15 kg/ Drying: 11 kg Washing: 27 kg/ Drying: 18 kg
Body color Stainless/ White Stainless/White Stainless/White White White
Acceptable coins T.B.D. (local coins) T.B.D. (local coins) T.B.D. (local coins) T.B.D. (local coins) T.B.D. (local coins)
Power 200-240V I single phase 200-240V I single phase 380V I 3 phase 200-240V I single phase 200-240V I single phase
Drying / heating system Open drying/ gas burner heating Open drying/ gas burner heating Open drying/ gas burner heating Open drying/ gas burner heating Open drying/ gas burner heating
Exhaust diameter Diameter: 200 mm Diameter: 200 mm Diameter: 200 mm Diameter: 200 mm Diameter: 200 mm
External dimensions ※1 800 (W) x 1262 (D) x 1725 (H) mm 940 (W) x 1357 (D) x 1830 (H) mm 1070 (W) x 1472 (D) x 1860 (H) mm 800 (W) x 1262 (D) x 1725 (H) mm 940 (W) x 1357 (D) x 1830 (H) mm
Weight 550kg 820kg 1110kg 550kg 820kg
Drum size 630 diameter x 480mm length 760 diameter x 595mm length 840 diameter x 630mm length 630 diameter x 480mm length 760 diameter x 595mm length
Rated electricity consumption 1100W (washing)/ 450W (drying) 1400W (washing) 1050W (drying) 2200W (washing) 1450W (drying) 1150W (washing)/ 550W (drying) 1700W (washing) 950W (drying)
Drum rotation speed(max.) Washing: 52rpm / spin: 850rpm / drying: 61rpm Washing: 45rpm / spin: 770rpm / drying: 53rpm Washing: 49rpm / spin: 730rpm / drying: 53rpm Washing: 52rpm / spin: 850rpm / drying: 61rpm Washing: 45rpm / spin: 770rpm / drying: 53rpm
Standanlcoursewaterconsumplion※2 143L 212L 277L 143L 212L
Drying heat source/ gas consumption※3 LP gas: 11.5kW (0.82 kg/h) Mains gas (13A): 11.5kW (9,900 kcal/h) LP gas: 20.9kW (1.49 kg/h) Mains gas (13A): 20.9kW (18,000 kcal/h) LP gas: 29.3kW (2.09 kg/h) Mains gas (13A): 29.3kW (25,200 kcal/h) LP gas: 11.5kW (0.82 kg/h) Mains gas (13A): 11.5kW (9,900 kcal/h) LP gas: 20.9kW (1.49 kg/h) Mains gas (13A): 20.9kW (18,000 kcal/h)
Airflow 9 m3/min 16 m3/min 17 m3/min 9 m3/min 16 m3/min
Pipe diameter Water supply: 20A Hot water supply: 20A (option) Gas supply: 15A Drainage: 89 mm Water supply: 20A Hot water supply: 20A (option) Gas supply: 15A Drainage: 89 mm Water supply: 20A Hot water supply: 20A (option) Gas supply: 15A Drainage: 89 mm Water supply: 15A Hot water supply: 15A (option) Gas supply: 15A Drainage: 65 mm Water supply: 15A Hot water supply: 20A (option) Gas supply: 15A Drainage: 65 mm

*1 The depth does not include the handle.

*2 Standard load. Varies depending on size of the load and fabric.

*3 Contact us nigarding gas consumption for mains gas (12A).
