Dryer for Drycleaning(Static Drying ,Oil-Recovery Model)
QDF Series [QDF-151R]
- The QDF Series of high-recovery, static drying machines can dry suits and dresses while they hang on hangars and recover solvent.
- Product No.
- QDF-151R
- Power
- AC200V 3-phase, 50/60Hz
- Max load capacity
- 15 outfits
- Electricity consumption
- 3.05kW(including a freezer unit)

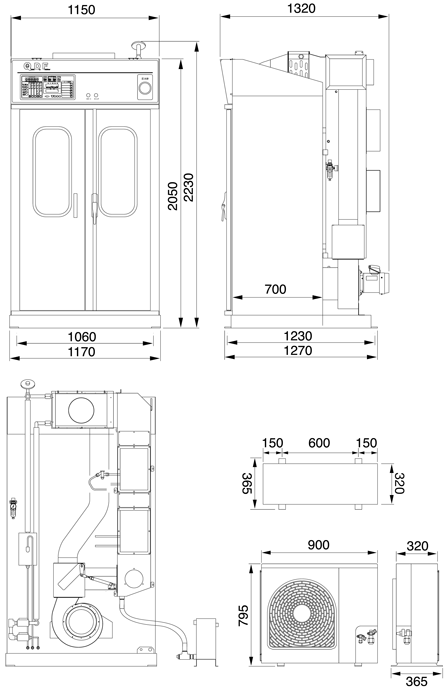

- External dimensions
- 1170 × 1320 × 2230 mm
- Weight
- 430kg
- Motor capacity
-
- Fluctuation
- 0.025kW
- Fan
- 0.75kW/4P
- Pipe Diameter
-
- Steam
- Steam Supply 20A,Steam Discharge: 20A
- Refrigerant
- High Pressure: Diameter 9.52mm, Low Pressure: Diameter 15.88mm
- Moisture Separation
- Solvent/Water Outlet 20A (3/4B)
- Steam pressure
- 0.4MPa
- Steam consumption
- About 25 kg/h
- Air flow
- 11.8m3/min
- Exhaust (Deodorization) diameter
- Φ200
- Air Port Size
- 8A (Air Hose Diameter 6mm)
- Air Pressure
- 0.5MPa
Other lineup
-
QDF-151R
Maximum load : 15 suits/dresses
-
QDF-301R
Maximum load : 30 suits/dresses
| Product No. | QDF-151R | QDF-301R | |
|---|---|---|---|
| Power | AC200V 3-phase, 50/60Hz | AC200V 3-phase, 50/60Hz | |
| Max load capacity | 15 outfits | 30 outfits | |
| Electricity consumption | 3.05kW(including a freezer unit) | 6.4kW(including a freezer unit) | |
| External dimensions | 1170 x 1320 x 2230mm | 2020 x 1400 x 2200mm | |
| Weight | 430kg | 600kg | |
| Motor capacity | Fluctuation | 0.025kW | 0.025kW |
| Fan | 0.75kW/4P | 1.5kW/4P | |
| Pipe Diameter | Steam | Steam Supply 20A,Steam Discharge: 20A | Steam Supply 20A,Steam Discharge: 20A |
| Refrigerant | High Pressure: Diameter 9.52mm, Low Pressure: Diameter 15.88mm | High Pressure: Diameter 9.52mm, Low Pressure: Diameter 15.88mm | |
| Moisture Separation | Solvent/Water Outlet 20A (3/4B) | Solvent/Water Outlet 20A (3/4B) | |
| Steam pressure | 0.4MPa | 0.4MPa | |
| Steam consumption | About 25 kg/h | About 35 kg/h | |
| Air flow | 11.8m3/min | 12m3/min | |
| Exhaust (Deodorization) diameter | Φ200 | Φ200 | |
| Air Port Size | 8A (Air Hose Diameter 6mm) | 8A (Air Hose Diameter 6mm) | |
| Air Pressure | 0.5MPa | 0.5MPa | |
