Commercial washer/dryer (SF series)

The washer/dryer meeting the demands of the new era.

～TOSEI-top supplier of washer/dryer in Japan～

SF-155GL

Washing/drying capacity
Washing: 15 kg / Drying: 11 kg
SF-275GL

Washing/drying capacity
Washing: 27 kg / Drying: 18 kg
SF-355GL

Washing/drying capacity
Washing: 35 kg / Drying: 26kg

Product List

drawing

Product No.	SF-155GL	SF-275GL	SF-355GL
Washing /drying capacity	Washing: 15 kg / Drying: 11 kg	Washing: 27 kg / Drying: 18 kg	Washing: 35 kg / Drying: 26 kg
Body color	Stainless / White
Acceptable coins	T.B.D. (local coins)
Power	200-240V / single phase		380V / 3 phases
Drying / heating system	Open drying / gas burner heating
Exhaust diameter	Diameter: 200 mm
External dimensions *¹	800 (W) x 1262 (D) x 1725 (H) mm	940 (W) x 1357 (D) x 1830 (H) mm	1070 (W) x 1472 (D) x 1860 (H) mm
Weight	550kg	820kg	1110kg
Drum size	630 diameter x 480mm length	760 diameter x 595mm length	840 diameter x 630mm length
Rated electricity consumption	1100W (washing) / 450W (drying)	1400W (washing) / 1050W (drying)	2200W (washing) / 1450W (drying)
Drum rotation speed (max.)	Washing: 52rpm / spin: 850rpm / drying: 61rpm	Washing: 45rpm / spin: 770rpm / drying: 53rpm	Washing: 49rpm / spin: 730rpm / drying: 53rpm
Standard course water consumption*²	143L	212L	277L
Drying heat source/ gas consumption *³	LP gas: 11.5kW (0.82 kg/h) Mains gas (13A): 11.5kW (9,900 kcal/h)	LP gas: 20.9kW (1.49 kg/h) Mains gas (13A): 20.9kW (18,000 kcal/h)	LP gas: 29.3kW (2.09 kg/h) Mains gas (13A): 29.3kW (25,200 kcal/h)
Air flow	9 m³/min	16 m³/min	17 m³/min
Pipe diameter	Water supply: 20A Hot water supply: 20A (option) Gas supply: 15A Drainage: 89 mm
1 The depth does not include the handle. 2 Standard load. Varies depending on size of the load and fabric. *3 Contact us regarding gas consumption for mains gas (12A).

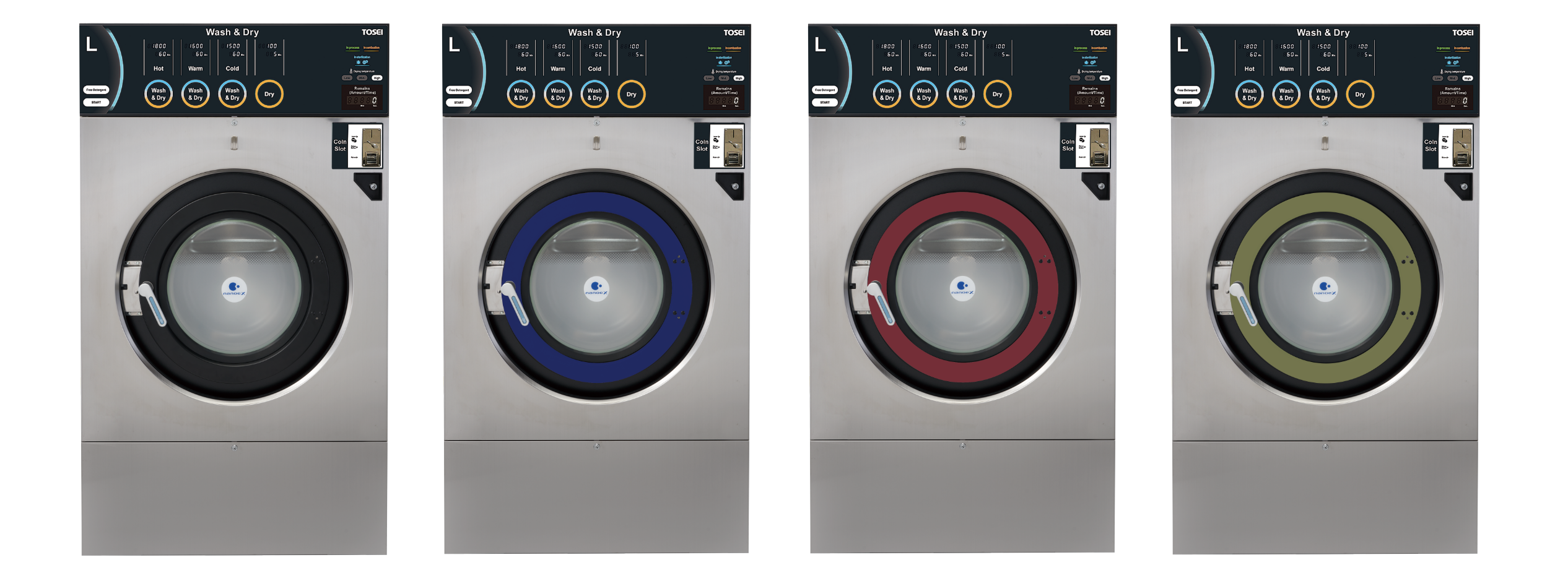

Door Rim Color

Selection of
4colors

Satin Black

Standard color
Sapphire Blue

※Option
Wine Red

※Option
Pistachio Green

※Option

Body color：Stainless

Body color：White

We have added a touchless panel to respond to
growing concerns about hygiene

Inquiry Form

Industry first

Patent pending

We have added a touchless panel to respond to growing
concerns
about hygiene

The course switch responds simply by bringing a finger close to the switch, without touching it directly, thereby enabling contactless operation.
The panel, together other features such as clothing sterilization and repellent temperature lamps, enables users to feel confident about the cleanliness of both equipment and their laundry.

Standby

All courses are displayed
When selecting a course

All options other than the course selected fade when the user holds their hand up to the panel
During operation

Only the selected course is displayed

Changes drying temperatures to
suit thegarment

Temperature settings can be changed based on laundry labels for delicate and other garments.

3-level temperature control

Attract more customers by promoting “mite repellent wash” which adds mite repellent agent to wash cycles

Mite repellant can be added to the triplex pump to enhance the mite repellant effect during the rinse cycle.
Promoting “mite repellent wash” will help attract customers.
*The mite repellent effect lasts about one month.

Inquiry Form

Inhibits mold and keeps washer
/dryers clean

Washer/dryers have been designed to dry the inside of the tank at a high temperature during the final “drying”
cycle, which is effective in controlling mold and inhibiting bacteria.
Tests have demonstrated that the level of mold and bacteria in a washer and dryer used for approximately 4 years is “1”.

Certificate of tests requested from
the Clinical Laboratory the Clinical Laboratory
Department at Toyo Kensa Center Co. Ltd.

Industry first

Patent pending

Customizable antiviral handles

Equipment door handles can be customized.This helps you differentiate your store and increase their appeal.
The handles have been treated to repel viruses and improve hygiene, enabling users to feel comfortable using the machines.

(Example)

“Automatic lint cleaning function” to keep drum clean

The water level is raised during drum washing to remove any lint that has got stuck between the drum and the bellows.

“Multi-level fan speed control” to prevent drying efficiency loss due to filter clogging

The fan speeds up to control the temperature inside the drum during drying when the filter is clogged.
This function prevents an error message from appearing and reduces the time and effort involved in resetting the machine.

Advantages of washer
/dryer 2-in-1 (combo) model

With washer/dryers, sales are stable in both sunny and rainy weather, contributing to space-saving and efficient design.

Combined washer/dryers ensure stable sales regardless of the weather. Having both washing and drying functions in one machine also saves space.

Install our washer/dryer
to improve utilization rate

While the number of dryer users increases on rainy days, sales on sunny days can also be expected as combined washer/dryers have a washing function in addition to a drying function.

Saves space and has high
spend per customer

Dryer sales account for 65% if all sales (approx. 500-600 yen per person), while washer/dryer sales account for 75% of all sales (approx. 800-1,200 yen per person), thereby increasing profitability.
